Discover the 2BV Series Liquid Ring Vacuum Pumps at VacuAqua. These compact and energy-efficient pumps are ideal for chemical processing, water treatment, and other demanding applications. Designed for wet and corrosive environments, the 2BV series offers reliable performance and low maintenance. Contact us today for customized vacuum solutions.

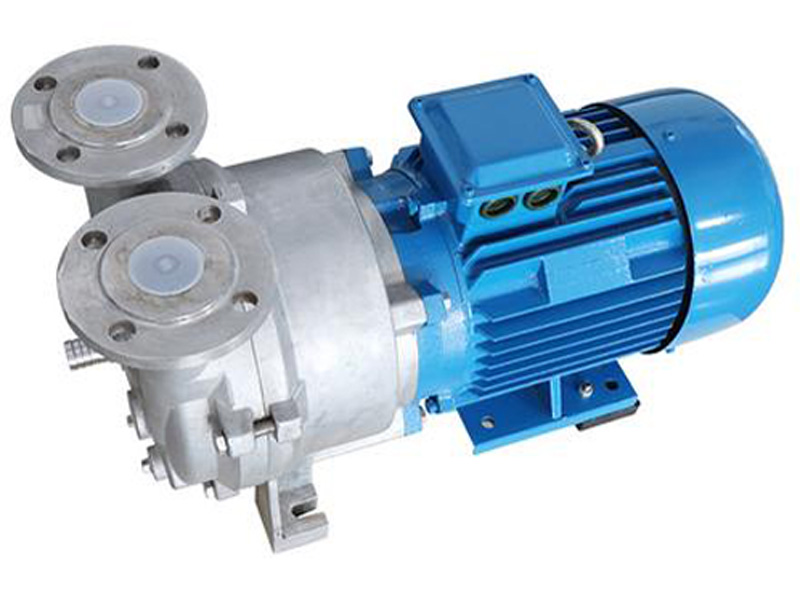

2BV series water ring vacuum pump is suitable for pumping gas and water vapor. The suction pressure can reach 33mbar absolute pressure (97% vacuum degree). If it works under conditions close to the ultimate vacuum for a long time, a cavitation protection device should be set to protect the pump. When used as a compressor, its pressure reaches 0.26MPa (absolute pressure). As a new generation of energy-saving products, 2BV series water ring vacuum pumps will fully replace SK, 2SK series water ring vacuum pumps and W, WY, WL series reciprocating vacuum pumps with same-sex performance and many advantages.

Features

■ Motor direct connection design, easy to install and easy to maintain.

■ All mechanical seals are used as standard.

■ Anti-wear and corrosion resistance.

■ Anti-cavitation, low maintenance. .

■ All use high-efficiency and energy-saving motors, the protection grade is IP54, IP55, and the insulation grade is F-class insulation.

■ According to the corrosiveness of the medium, special materials can be provided: 304 and 316L stainless steel and other materials; according to customer needs, various sealing methods such as packing seal and mechanical seal can be provided.

■ According to the flammable and explosive characteristics of the contact gas, an explosion-proof motor can be used. Explosion-proof grade dIIBT4, motor protection grade IP55.

■ The mechanical seal adopts imported products, and the seal can be made of fluororubber or polytetrafluoroethylene.

■ 2BV series vacuum pump coaxial design is very suitable for vacuum filtration, vacuum distillation, vacuum disinfection, vacuum extrusion/molding, vacuum impregnation, water pump diversion, vacuum packaging, solvent recovery, food processing and other fields.
