Explore VacuAqua's 2BE Series Liquid Ring Vacuum Pumps (2BE1, 2BE3), designed for high-capacity and heavy-duty applications. Ideal for industries such as power generation, chemical processing, and mining, these energy-efficient pumps ensure reliable performance in demanding environments. Contact us for tailored vacuum solutions.

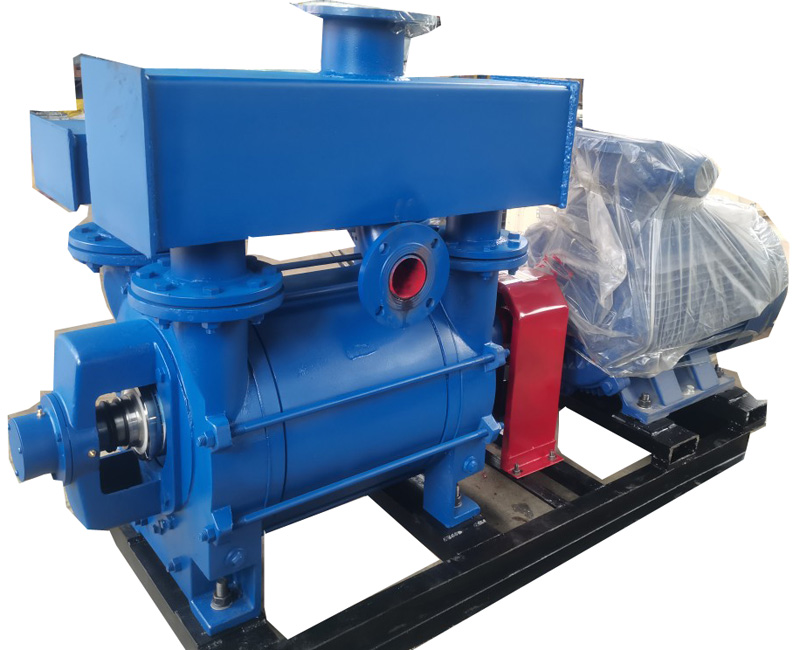

2BE1 series water ring vacuum pump/compressor can pump up to 22000m3/h, and the low suction pressure can reach below 33 mbar A. When used as a compressor, its outlet pressure can reach 0.35MPa.G.

With only one rotating part (rotor part) and no direct friction between metals, the 2BE1 series water ring vacuum pump, the compressor flat disc design, avoids wear, even after years of continuous operation.

Features

Optimized design to ensure operational reliability

■ High reliability and easy maintenance.

■ Low operating costs.

■ Low noise

■ According to the installation conditions of the working condition site, top exhaust or horizontal exhaust can be selected for easy installation and design.

■ Diversified material selection of pumps, including 304 stainless steel, 316L stainless steel, duplex stainless steel, titanium, as well as polyisoprene rubber (NR) lining, SEBF spraying, penetrating Hastelloy, etc.

Pumps are available in a variety of options, such as:

■ Pump head

■ he whole pump, including suction communication pipe, steam-water separator and liquid pipeline fittings.

■ Vacuum pump unit, including motor and base.

■Complete sets of units, including auxiliary equipment required for all closed-loop systems.

■ Two-stage or multi-stage vacuum system when the inlet pressure is lower than 33mbar (absolute pressure)

2BE1 series has a very wide range of applications

For example:

■ Vacuum distillation

■ Vacuum dehydration

■ Vacuum filtration

■ Vacuum extrusion/forming

■ Vacuum impregnation

■ Vacuum disinfection

■ Liquid spitting

■ Condenser vacuum

■ Desulfurization device in fly ash treatment

■ Compression of flammable and explosive special gases such as acetylene

■ Pulp and paper

■ Gas recovery

■ Solvent recovery
