Explore VacuAqua's 2BE Series Liquid Ring Vacuum Pumps (2BE1, 2BE3), designed for high-capacity and heavy-duty applications. Ideal for industries such as power generation, chemical processing, and mining, these energy-efficient pumps ensure reliable performance in demanding environments. Contact us for tailored vacuum solutions.

2BE3 series water ring vacuum pumps and compressors are high-efficiency and energy-saving pump. They are usually used to suck gas that does not contain solid particles, is insoluble in water, and is non-corrosive, so as to form a vacuum in a closed container and pressure. By changing the structural materials and adding anti-corrosion coatings, it can also be used to suck corrosive gases or use corrosive liquids as working fluids. It is very suitable for long-term, continuous operation. 2BE3 series products have been designed with full consideration that it must be able to extract a variety of gases.

2BE3 can be used with various drive devices, such as belt drive, gearbox, synchronous motor, variable frequency governor, etc. In addition, in order to save space, a series operation mode driven by one motor can also be adopted.

Features

● This series of pumps adopts a single-stage and single-acting structure, which has the advantages of simple structure, convenient maintenance, reliable operation, high efficiency and energy saving, and can adapt to harsh working conditions such as large displacement and load shock waves.

● Unique and flexible suction and exhaust port optimization design, allowing upper and side exhaust methods, easy to install on site. In limited installation space, 2BE3 can be installed with an upper separator, reducing the floor space and eliminating the need for trenches.

● The impeller is welded and treated with high temperature solidification and melting, and the blade is punched, formed and shaped at one time.

● Through the optimized design of the disc and impeller, the internal fluid backflow efficiency is improved, and the energy saving reaches 6 to 8%. The effect is obvious.

● The supply range of pumps can be flexibly selected according to customer requirements:

Pump head: including top-mounted separator and connecting pipe.

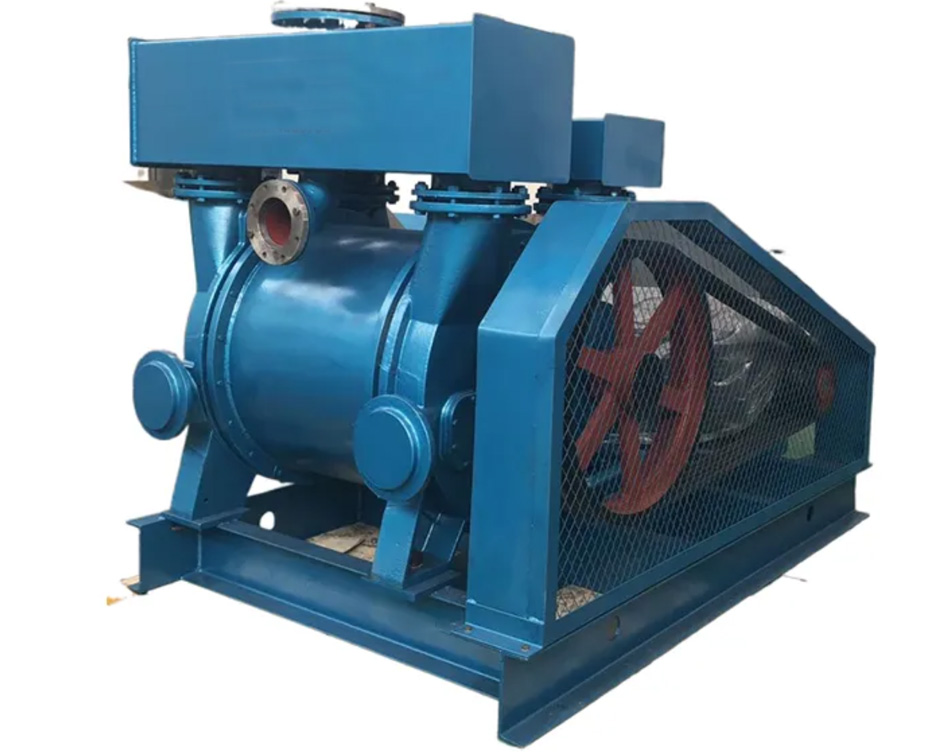

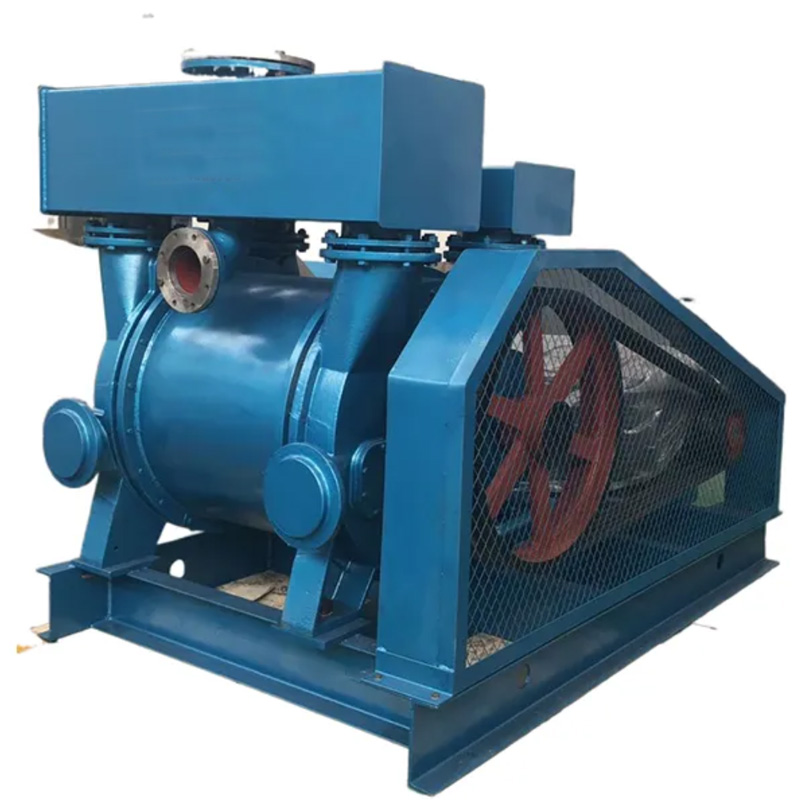

Complete-built unit: including pump head, top-mounted separator, connecting pipe, motor, chassis, shield, electric pump coupling or electric pump pulley, belt.

Vacuum pump unit: including vacuum pump complete-built unit, gas-water separator, one-way valve, bellows and connecting pipelines, electric contact vacuum gauge, self-coupling vacuum starting cabinet.

Complete set of equipment: including complete-built unit pump, gas-water separator (with liquid level gauge), heat exchanger, valve, normally closed valve, filter, vacuum gauge, pressure gauge, pipeline, electric control cabinet.

● Various transmission modes, such as: coupling drive, pulley drive, gear reducer drive.

● According to the corrosiveness of the medium, special materials can be provided: 304, 316L, duplex stainless steel and other materials; according to customer needs, various sealing methods such as packing seal and mechanical seal can be provided.

It has been widely used in papermaking, coal mine, power plant, vacuum filtration, chemical industry, petrochemical industry, food processing and other industries.
